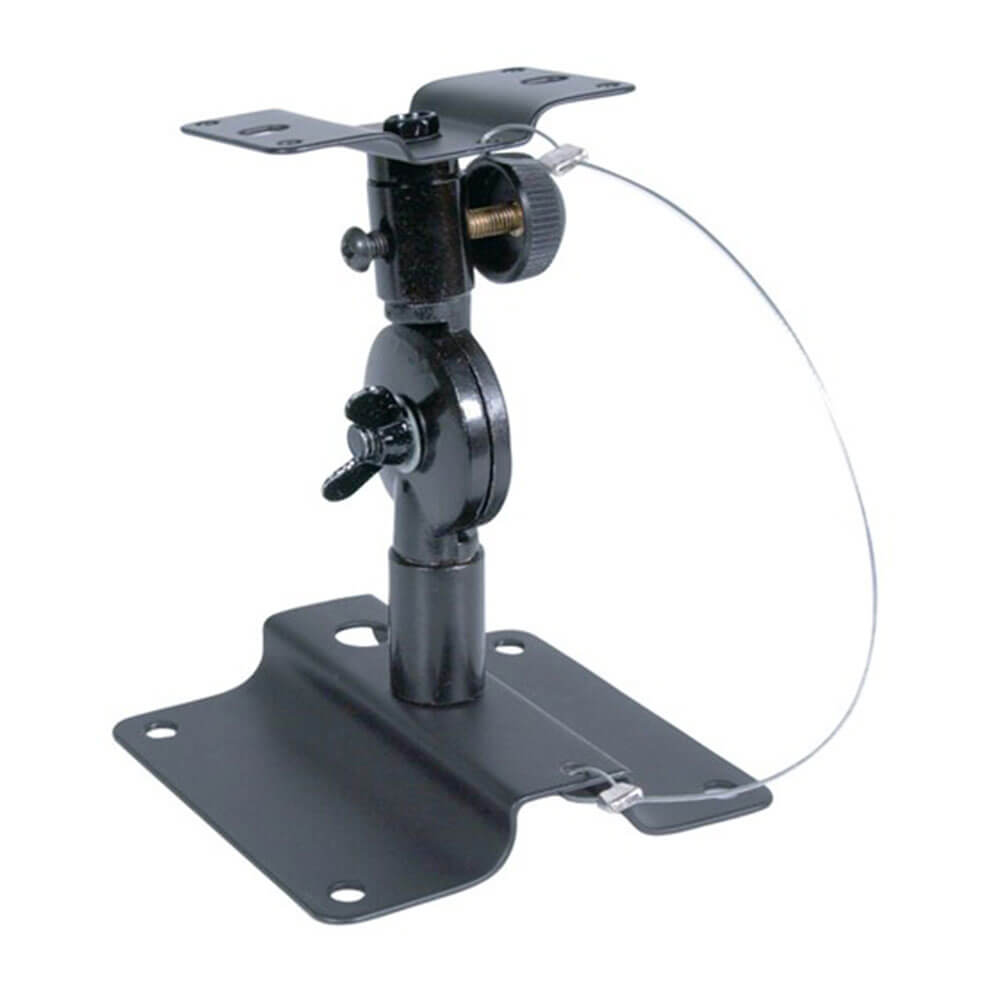

This sturdy bracket has main axis angle adjustment by a diecast, toothed plate secured by a wing nut. The detents won't slip as can happen with ball types. Minor axis adjustment is by a handwheel with backup by lockscew. As a safety measure a steel wire lanyard loosely attaches the two halves of the bracket together- a good safety feature that is common in professional P.A Installations. The wall plate has holes for 4 x 6mm (or 1/4) screws. Another hole is provided for speaker wire egress. The speaker mounting plate has 4 x 4mm holes and also two slotted holes.
Product Specifications
- Max Speaker box weight 10kg
- Angle Variation: Main- over 180 Degrees
- Minor-360 Degrees
- Wall mount plate: 100 (W) x 105 (H)mm
- Speaker mount plate: 80 (W) w x 45 (H)mm
- Distance from speaker to wall 135mm
- Width : 100.0mm
- Height : 105.0mm
- Depth : 135.0mm
- Width : 80.0mm
- Height : 45.0mm
- Mounted Item Weight : 10.0kg
- Swivel Angle : 180.0 Degrees
- Distance from Wall to Mounted Item : 135.0mm
| Length : 10,5 cm |
Width : 12 cm |
| Height : 13,5 cm |
